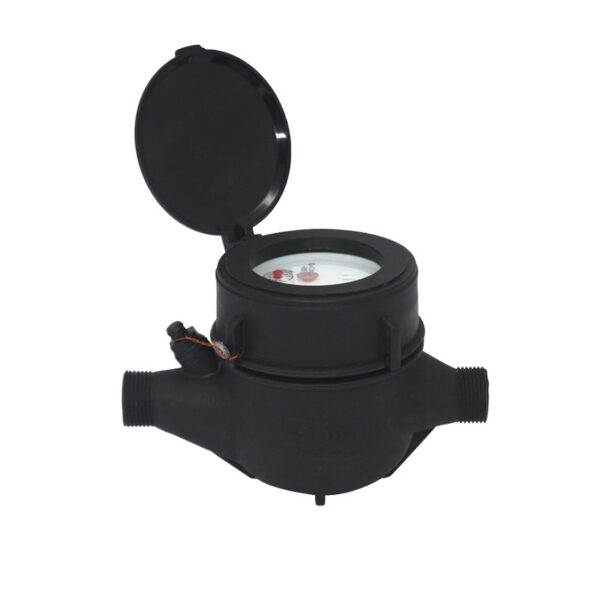

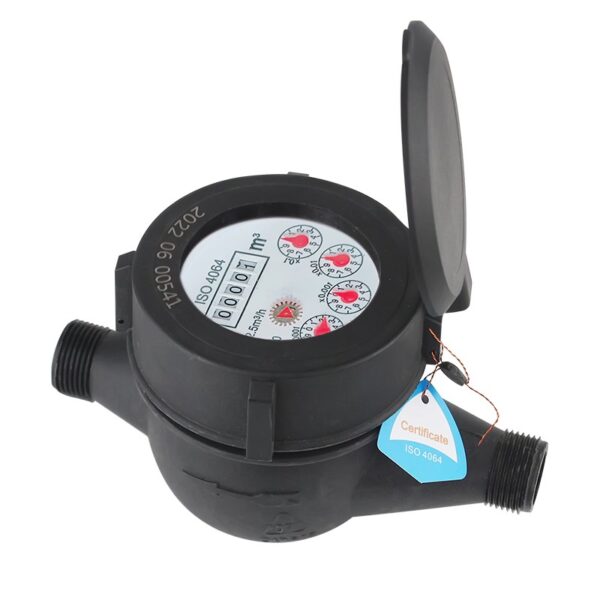

Plastic Body Multi Jet Water Meter

Categories: ,


  • Measuring the volume of cold (hot) water passing through the pipeline.
  • water meter is used for home or apartment


  • Magnetic Drive, Lower transmission resistance.
  • Magnetic shield, for external magnetic field protection.
  • Sealed dry register ensures long time clear reading.
  • External regulating device.Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
    With high accuracy
    For horizontal use
    Accessories include Strainer, Rotary piston, Connection Widget, connector fitting

Optional Features

  • Register sealed type: Dry type; Semi-dry type; Super-dry type.
  • Accuracy: R=80/100/125/160/class b/class c.
  • Size: 15~50mm.
  • Cold / hot water.
  • Non return valve.
  • Reed switch option.
  • Several lengths and connections availavle on request.
  • Thread end type: BSP / NPT.
  • Materials: Plastic, brass,Brass interface,brass material
  • plastic Working pressure: PN10
    brass Working pressure: PN16
    Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display

Maximum Permissible Error

  • In the lower zone from qmin inclusive up to but excluding qt is ±5%.
  • In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.

Standards Compliance

Technical data conform to international standard ISO 4064.

Working Conditions

  • Water temperature: 0.1℃~50℃ for cold water meter;0.1℃~90℃ for hot water meter.
  • Water pressure: ≤1.6Mpa.
